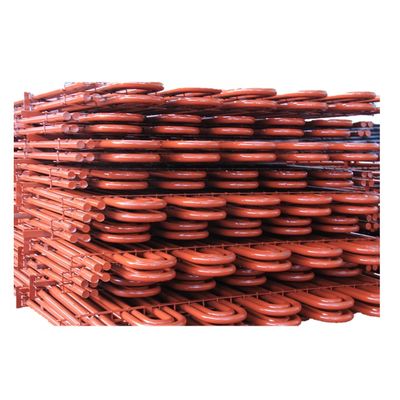

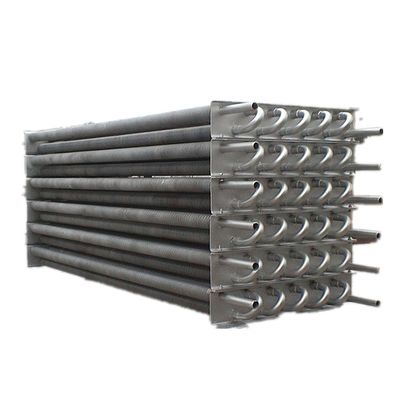

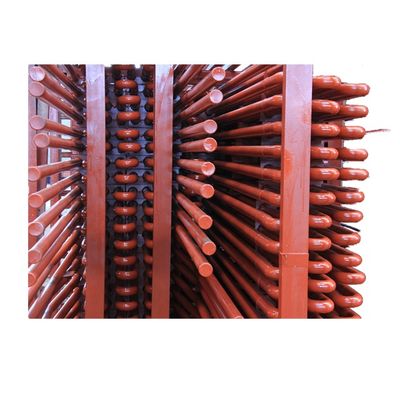

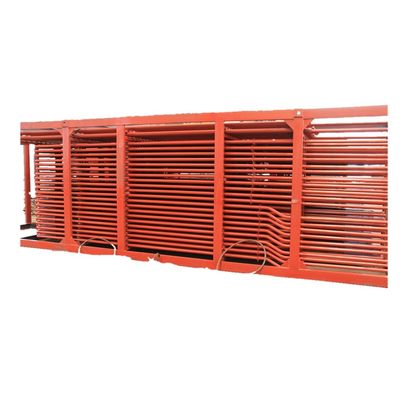

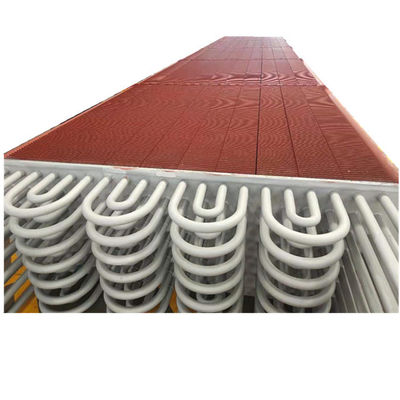

Low High Pressure Boiler Economizer with Max 60t/h Steam Production and Natural Circulation
| Место происхождения | Чжанцзянган, Китай |
|---|---|
| Фирменное наименование | HD Boiler |
| Сертификация | ISO9001,ASME,SGS,EN,TUV |
| Номер модели | Экономизатор голого типа |
| Количество мин заказа | 10 тонн |
| Цена | $2,200-2,500 / ton |
Свяжитесь со мной для бесплатных образцов и купонов.
Ватсап:0086 18588475571
Вичат: 0086 18588475571
Скайп: sales10@aixton.com
Если у вас есть какие-либо проблемы, мы предоставляем круглосуточную онлайн-помощь.
xПодробная информация о продукте
| Тип | Естественная циркуляция | Структура | Огневая труба и водяная труба |
|---|---|---|---|
| Давление | Низкое/высокое давление | Производство пара | Максимум 60 т/ч |
| Стиль | Вертикальный | Топливо | Угольные |
| Выход | Горячая вода/пар | Обработка поверхности | Окрашен |
| Голая труба OD | 25-1650 мм | Голая толщина трубы | 2-40 мм |
| Толщина плавника | 00,6-3,0 мм | Плавник высота | 5-30 мм |
| Fin Tube Pitch | 5-30 мм | Фин -трубка длина | ≤12000 мм |
| Материал | Углеродистая сталь, сплав, аустенитная сталь | ||
| Выделить | Max 60t/h Steam Production Boiler Economizer,Low High Pressure Boiler Economizer,Natural Circulation Boiler Economizer |
||
Характер продукции
Low / High Pressure Flue Gas Boiler Economizer Heat Exchanger Devices With Finned Tubes
Boiler Economizer
Introduction
Economisers perform a key function in providing high overall boiler thermal efficiency by recovering low-level energy from flue gas before it is exhausted to the atmosphere. They recover this energy by heating the boiler feedwater. Economisers are tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces, reducing operating costs by recovering extra energy from flue gas.
Procedure
Economisers reduce the potential for thermal shock and strong water temperature fluctuations as feed water enters the drum or waterwalls. They also help meet stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emissions. The gas-side heat transfer coefficient is much lower than the water-side coefficient, so outer tube surfaces may be finned to increase heat transfer area. Economiser design aims to achieve necessary heat transfer at minimum cost, with maximum allowable flue gas velocity being a key criterion.
Specifications
| Name (unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
Material: Carbon Steel, Alloy, Austenitic Steel (Nickel and Chromium or Manganese)
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure boiler quality
- Hydraulic test report to ensure standard working pressure and safety
